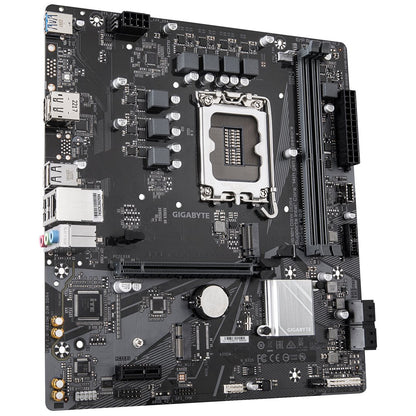

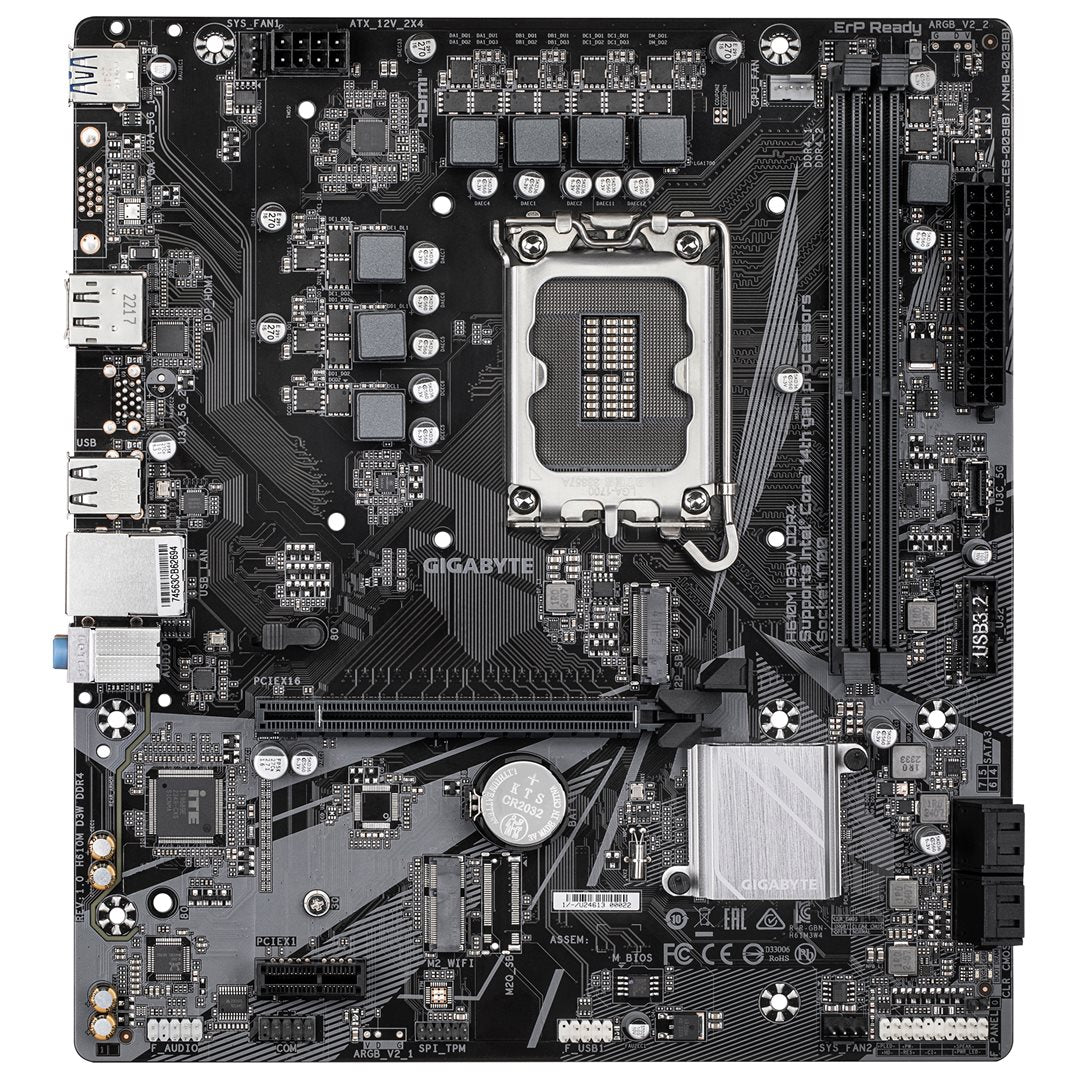

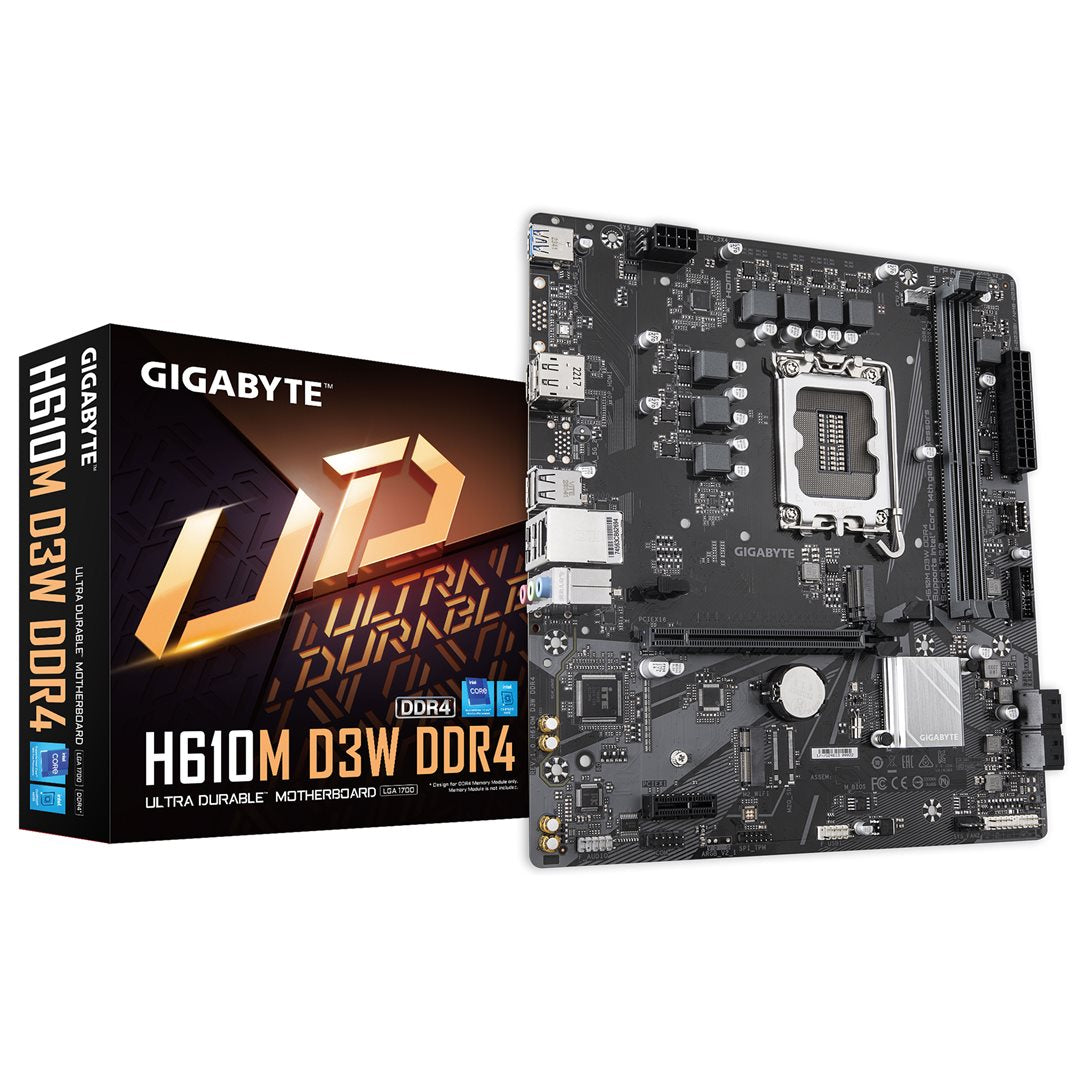

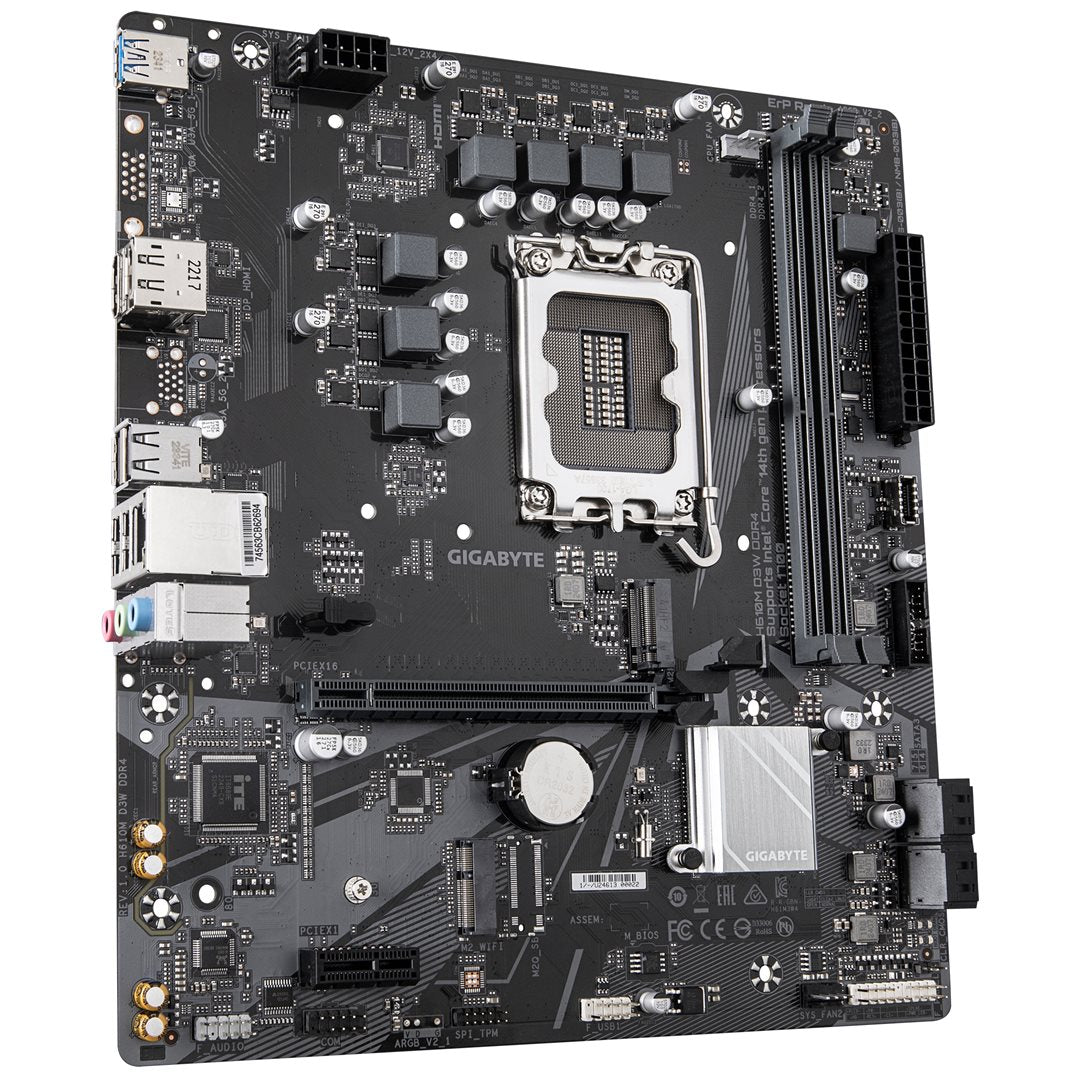

GIGA H610M D3W DDR4 S1700/DDR4/DP-HDMI/µATX

• Socket LGA1700: Support for the 14th, 13th, and 12th Generation Intel® Core™,
• Intel® H610 Express Chipset
• 2x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
• Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules

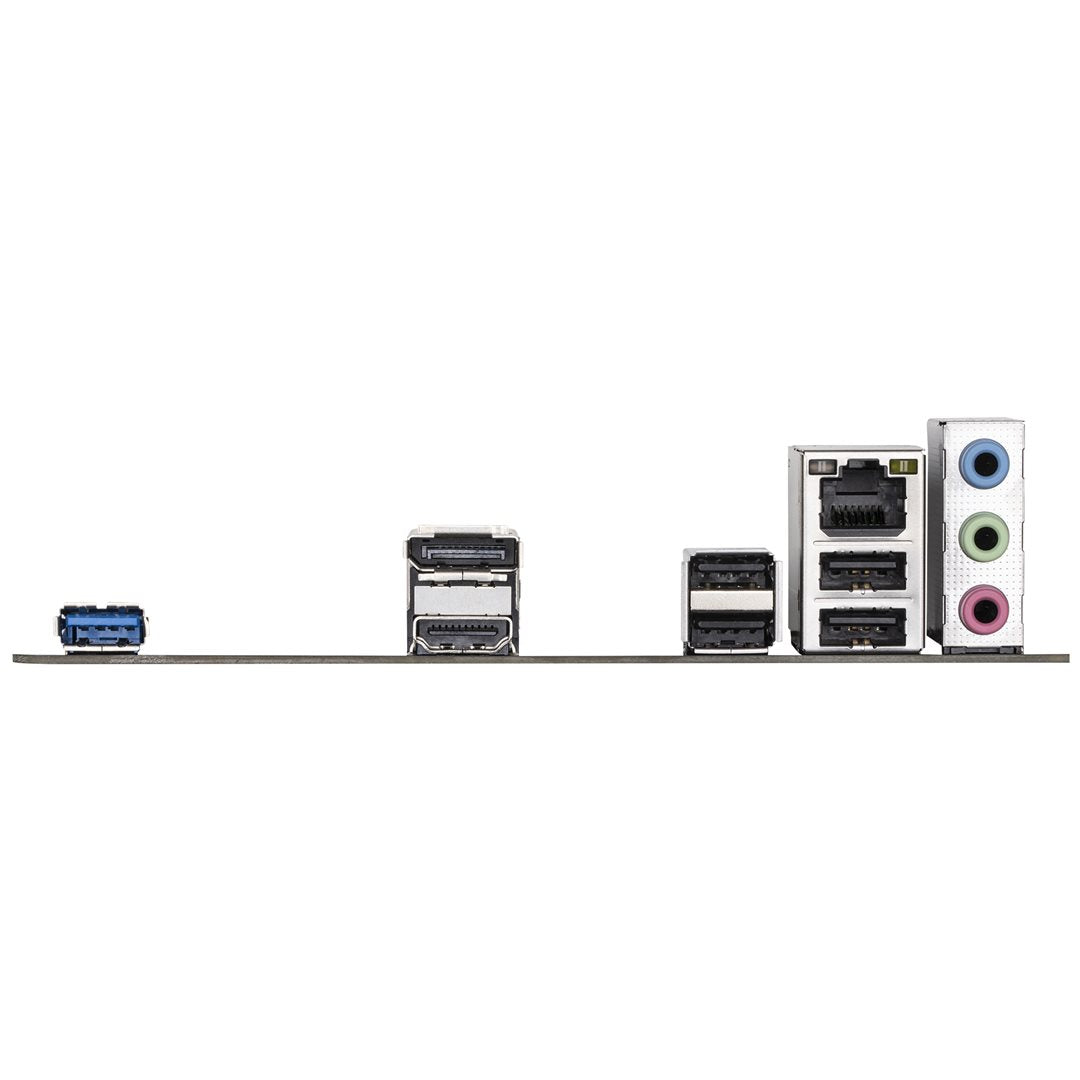

• - 1x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
• * Support for DisplayPort 1.2 version and HDCP 2.3.
• - 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) RJ45
• - 1x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
• - 1x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
• - 1x M.2 Socket 1 connector, for the CNVi wireless communication module (M2_WIFI)
• - 1x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support)
• - 4x SATA 6Gb/s connectors
• - 3x USB 3.2 Gen 1 ports (1 ports on the back panel
• - 4x USB 2.0/1.1 ports on the back panel
