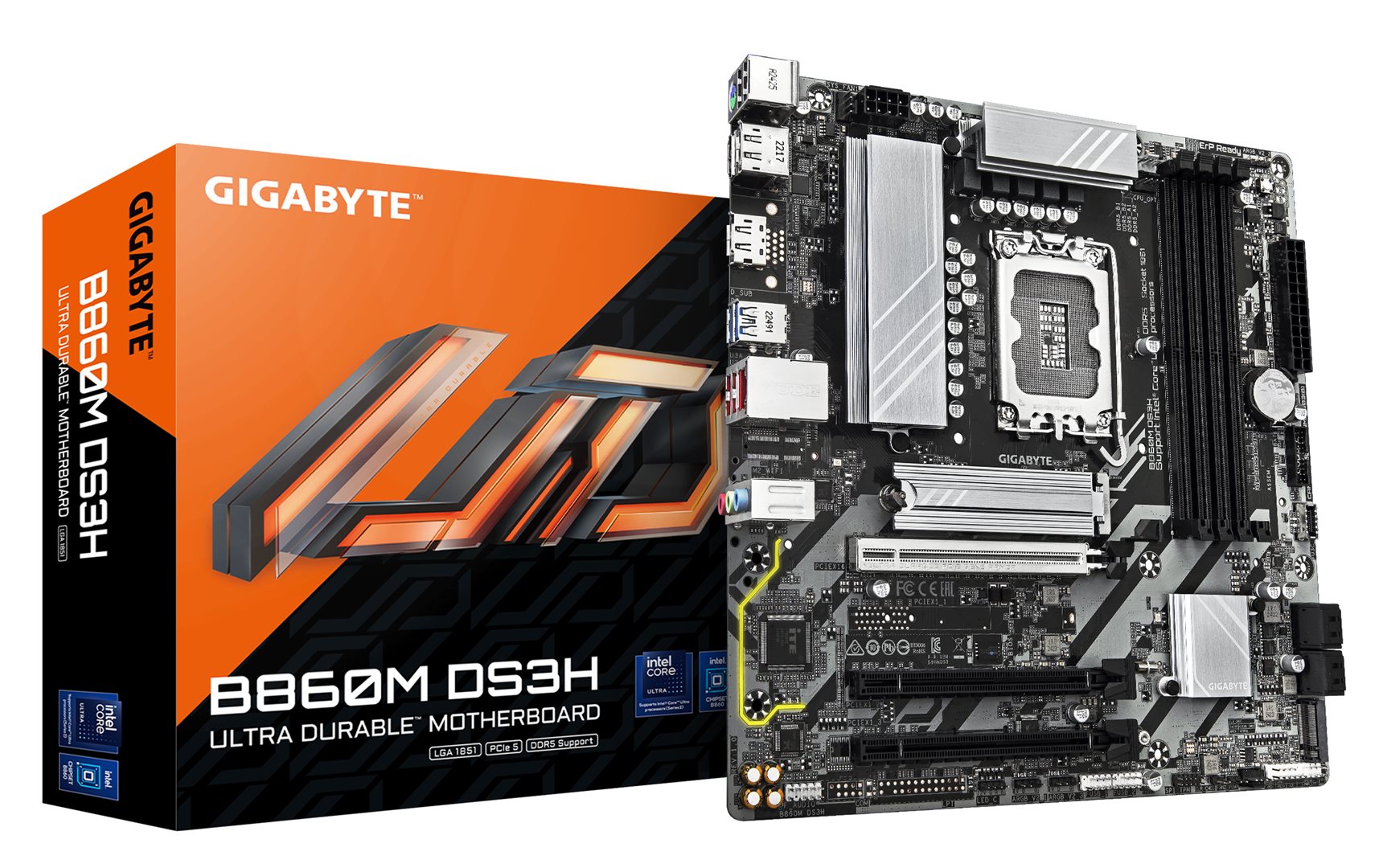

GIGA B860M DS3H S1851/DDR5/µATX

• - Intel socket LGA 1851 for Intel Core Ultra 5/7/9 (Serie 2) Processors
• - Intel B860 Express Chipset
• - 4x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
• - 1x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• - 2x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
• - Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• - 1x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
• - 2x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_2/3)
• - 1x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
• - 1x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB)
• - 4x SATA 6Gb/s connectors with RAID 0, RAID 1, RAID 5, and RAID 10 SATA support, no nvme RAID
