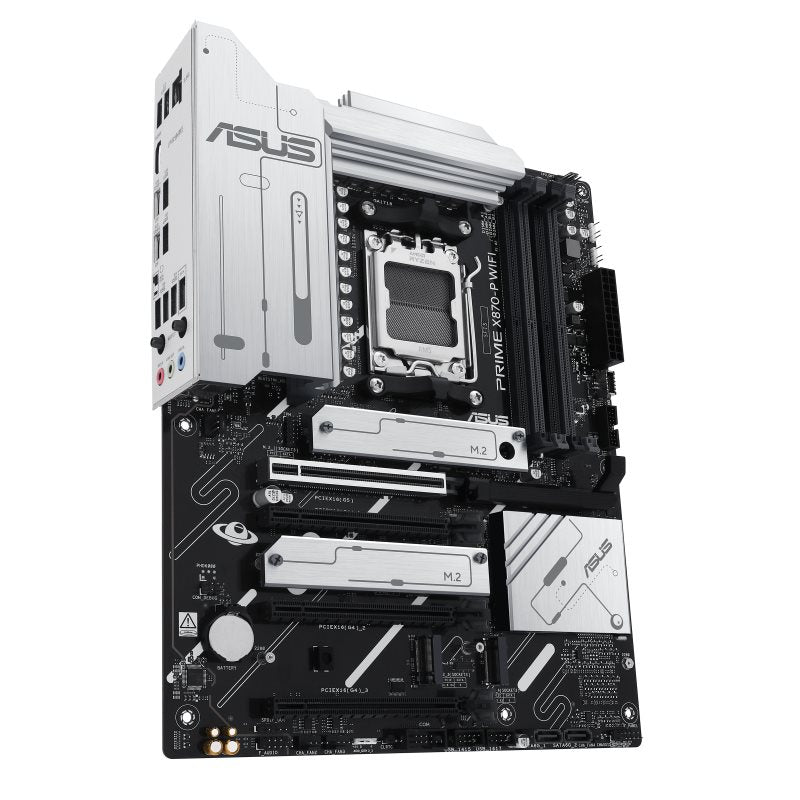

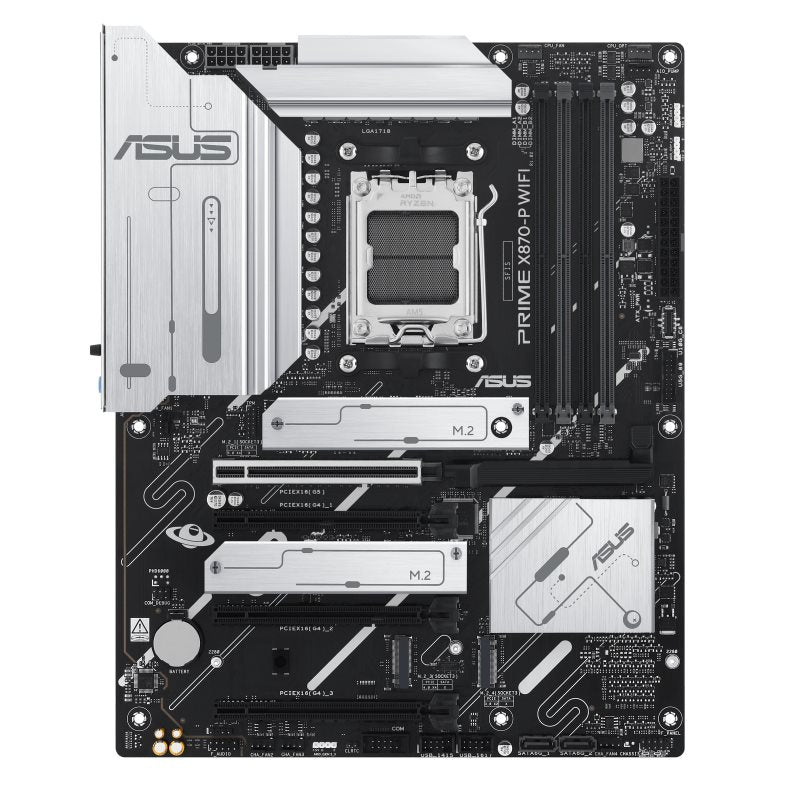

ASUS PRIME X870-P WIFI X870/AM5/HDMI-USB4-C/4xM.2/ATX

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series
• AMX X870 Chipset
• 4 x DIMM slots, max. 256GB, DDR5
• Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series
• ECC and Non-ECC, Un-buffered DIMM* , Dual channel memory architecture
• 1x HDMI™ port, Supports 4K@60Hz as specified in HDMI 2.1.
• 2x USB4 (40Gbps) ports support USB Type-C display outputs,
• supports max. 4K@60Hz as specified in DisplayPort 1.4a.
• 1x PCIe 5.0 x16 slot supports x16 mode (Ryzen 9000 & 7000 Series)
• 3x PCIe 4.0 x1 slot (x16 physical)
• 4x M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
• 1x M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)*
• 2x SATA 6Gb/s ports
• 1x Realtek 2.5Gb Ethernet RJ45
• Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band
• Realtek 7.1 Surround Sound High Definition Audio CODEC
• 2x USB4 (40Gbps) ports (2 x USB Type-C)
• 1x USB Type-A: 10Gbps port, 3 x USB 5Gbps ports , 4x USB 2.0
• 3x Audio jacks, optional: 1x COM port, 1x TPM Header
